MJ-C Mixer Series: Light Duty
Description
Lightweight batch mixers for powders and granules with light bulk density and good to average flow behavior. The addition of liquid (s) or grease (s) is also possible.
The mixers MJ-C are intermediate mixers between the MJ and MP series.
Available only for small sizes (MJ-C 20, 50, and 150)
Advantages compared to only the small MJ series mixers (20, 50 and 150)
| Manual tilting assisted with gas springs to be able to adjust angle while mixing |
| Tilting range slightly larger widening the range of product types to mix |
Standard Equipment
| All the structure and the parts in contact with the products are made of stainless steel AISI 304/ DIN 1.4301 |
| Mixing tank mounted on 2 pivots for the tilting |
| Manual tilting assisted with gas springs |
| Transparent lid or with windows for visual inspection during the mixing process |
| Mobile mixer on wheels |
Optional Equipment (Non exhaustive list)
| Inside mirror-polished tank: For an increased hygiene and an easier cleaning |
| Quick removable mixing screw without tools: for an easy and fast cleaning |
| Vibrator: To help mix sticky powders as well as discharge in some cases |
| Air protected bearings: To prevent the infiltration of very fine and / or abrasive powders into the bearings of the mixing screw. The life of the bearings is thus preserved |
|
Delumpers: - For more efficient integration of low-ratio ingredients such as liquids, fats or powders. |
| Variable speed control: for intensive or soft mixing |
| Explosive environments: MJ-C mixers could also be delivered as Ex equipment for ATEX/Ex areas. |
Model: MJ-C50 during mixing of several kind of herbs
Model: MJ-C50 (here, as Ex. Equipment)
Model: MJ-C150
Model: MJ-C150
Suitable for the following industries
| Food |
| Food supplements |
| Petfood |
| Chemical |
| Cosmetic |
Capabilities & Properties of the MJ-C mixer series
| For any type of powders and granules with light bulk density and good to average flow behavior |
| Mixing ratio: up to 1 / 100’000 |
| Flexibility in the batch size: from approximately 10 to 90% of the total mixing tank’s volume |
| Short mixing time: from a few seconds up to a few minutes depending on mixer’s size and product |
| Ability of mixing powders and granules with different bulk density and particle sizes |
| Possibility to add liquid or grease in the products to mix |
Additional advantages
| Provided immediately operational |
|
Easy cleaning - Dry or with water. |
| Low maintenance |
| Compact mixers with regard to the mixing volume offered |
| Light mixers |
| Low power consumption |
| Silent |

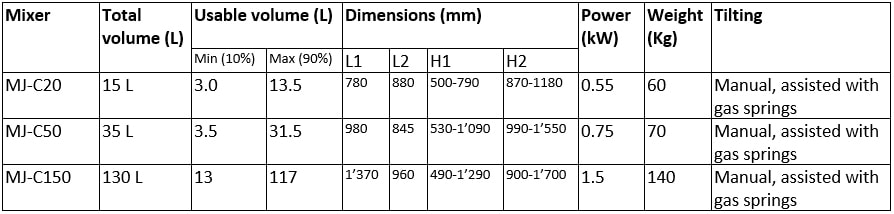

Technical Data
